Pressure Monitor Interface Cables

Pressure Monitor Interface Cables

UTMD Pressure Monitor Cables provide the interface between Deltran® transducers and virtually all pressure monitor models, ensuring that Deltran® accurately monitors patient vitals.

Pressure Monitor Cables

Model Number Description Unit of Measure Image
650-201 Reusable Blood Pressure Monitor Interface Cable, 6 pin. *

• Criticare Sys. Vital Signs 1100.
• Critikon Dynamap 8720, 8721, Plus.
• Mennen.
• Horizon 2000, 9000, MR1200, 1400, Alpha-PC.
• Johnson & Johnson Dynamap 9720 or Select.
• Mennen 400, 500, 600, 700, 900, XL Series, Solo/Micro-Solo, Horizon 2000, 9000, MR 1200, 1400, Alpha-PC (No Cal), 518 and 922 series, Envoy, Vitalogik, Enmove (Envoy and Vitalogik require an adapter cable from Mennen).
• North American Draeger Vitalert 2000.
• Physio-Control VSM-1, VSM-4, VSM-5 (m-volt) (With Cal).
 1/EA Blood Pressure Monitor Interface Cable, 6 pin. Model 650-201
650-202 Reusable Blood Pressure Monitor Interface Cable, 5 socket. *

• Hewlett Packard 5microvolt Standard 8805B, 8805D 78205A-D w/Twinax.
 1/EA Blood Pressure Monitor Interface Cable, 5 socket. Model 650-202
650-203 Reusable Blood Pressure Monitor Interface Cable, 10 pin. *

• Draeger Infinity series (Infinity is not a specific monitor but is a category of monitors - see below for specifics if Siemen IBP adapter is required).
• Siemens Axiom Sensis XP with Hemopod ¹, Sirecust 400-630-700-960-961-1241- 1280-1281, SC6000 ², SC6002 ², SC6002 XL ², SC6802 XL ², Gamma XL ², Vista XL ², SC7000, SC8000, SC9000, SC9000 XL, Delta, Delta XL.
¹ Axiom is used in the Cathlab with the Hemopod. The Hemopod is available in both 10 and 7 pin.
² Some of Draeger/Siemen monitors use the std 10 pin Siemen connector, but these models require Draeger's IBP Adapter 10 to 7 pin pn 3368383.
1/EA Blood Pressure Monitor Interface Cable, 10 pin. Model 650-203
650-204 Reusable Blood Pressure Monitor Interface Cable, 6 socket. *

• CWE Research Lab Monitor.
• Mindray - Datascope System IA Baloon Pump 95, 97, 98, 98XT, CS100, CS300, 2000, 2000A, 2001, 2002, 3000, PassPort, PassPort II, Spectrum, Spectrum OR, Trio.
• Kontron (Roche) 2106, 7320, 7324 (BP Module for 7046 & 7048).
• Marquette/General Electric 3100 Series.
1/EA Blood Pressure Monitor Interface Cable, 6 socket. Model 650-204
650-206 Reusable Blood Pressure Monitor Interface Cable, 12 pin. *

• Philips.
• Omnicare M1006A to M1176A.
• Veridia.
 1/EA Blood Pressure Monitor Interface Cable, 12 pin. Model 650-206
650-206-D Reusable Blood Pressure Monitor Interface Cable - Dual Pressure, 12 pin. *

• Philips Intellivue.
 1/EA Blood Pressure Monitor Interface Cable, 12 pin. Model 650-206-D
650-206M Reusable Blood Pressure Monitor Interface Cable, 12 pin. *

• Mindray / Datascope BeneView T5, T6, T7, T8.
 1/EA Blood Pressure Monitor Interface Cable, 12 pin. Model 650-206M
650-208 Reusable Blood Pressure Monitor Interface Cable, 6 pin. *

• Bard H8000 Intra Aeortic Balloon Pump (No Cal).
• BCI Intl 9100 Series and 9200 Advisor Series.
• Digicare.
• Dixtal DX-2020, DX-2021, and DX-2023.
• Invivo Corporation/Medical Data Electronics, Inc. TVS Omnitrak, Omnitrak 4000, Millenia, Model 3550 Escort M12, Escort 100 - 200 - and 300 Series, Series 3100 - 3500.
• Ivy Biomedical 700, 400 Series.
• Medical Research Laboratories - Welch Allyn Portable Invasive Care (PIC).
• Mindray / Datascope.
• PaceTech VitalMax 4000 Modular.
• Physio-Control Lifepack 12.
• Smiths Medical.
• Spacelabs 300, 400, 500, 600, Alpha 7, Alpha PC, 90402, 90403, 90470, 90496*, 91496*, PC Express, 700 Surgical Series, Tel/Vitatek, Scout TPC *90496 and 91496 require Spacelabs 700-0028-00 rectangular jumper cable.
• Welch Allyn Propaq 102, 104, 106 Acuity.
 1/EA Blood Pressure Monitor Interface Cable, 6 pin. Model 650-208
650-209 Reusable Blood Pressure Monitor Interface Cable, 5 pin. *

• Spacelabs 700 Series, Alpha 9/14 and Alpha Surgical Series.
 1/EA Blood Pressure Monitor Interface Cable, 5 pin. Model 650-209
650-210 Reusable Blood Pressure Monitor Interface Cable, 5 pin. *

• Siemens.
 1/EA Blood Pressure Monitor Interface Cable, 5 pin. Model 650-210
650-211 Reusable Blood Pressure Monitor Interface Cable, 7 pin. *

• Marquette Ivy, Tram 7000, 7010, 7200 Series.
 1/EA Blood Pressure Monitor Interface Cable, 7 pin. Model 650-211
650-212 Reusable Blood Pressure Monitor Interface Cable, 8 pin. *

• Marquette 3000 Series.
 1/EA Blood Pressure Monitor Interface Cable, 8 pin. Model 650-212
650-213 Reusable Blood Pressure Monitor Interface Cable, 5 pin. *

• Litton-Hellige 4th Generation.
• Roche (Kontron) Fetasonde 5.
 1/EA Blood Pressure Monitor Interface Cable, 5 pin. Model 650-213
650-216 Reusable Blood Pressure Monitor Interface Cable, 6 socket. *

• Air-Shields AS-8 (No Cal).
 1/EA Blood Pressure Monitor Interface Cable, 6 socket. Model 650-216
650-217 Reusable Blood Pressure Monitor Interface Cable, 10 socket. *

• Air-Shields AS-100 (141 Module), AS-441.
• Diascope Traveler/North American.
• General Electric Datex-Ohmeda AS/3, AS/5, ESTP Module, CC-104, Cardio-Cap CM-104, Cardio-Cap I and II, Cardio-Cap V.
• Simonson & Weil AS100 Series, Athena System, 8000 Quadrascope.
 1/EA Blood Pressure Monitor Interface Cable, 10 socket. Model 650-217
650-218 Reusable Blood Pressure Monitor Interface Cable, 5 pin. *

• Air-Shields 8000 Series.
 1/EA Blood Pressure Monitor Interface Cable, 5 pin. Model 650-218
650-219 Reusable Blood Pressure Monitor Interface Cable, 12 pin. *

• Corometrics (DPT) 115, 116, 151, 556.
 1/EA Blood Pressure Monitor Interface Cable, 12 pin. Model 650-219
650-221 Reusable Blood Pressure Monitor Interface Cable, 8 pin. *

• Fukuda Denshi Dynascope DS-800/830, DS-1060, DS-1100/1130.
 1/EA Blood Pressure Monitor Interface Cable, 8 pin. Model 650-221
650-223 Reusable Blood Pressure Monitor Interface Cable, 10 pin. *

• Draeger PM8014 and PM8060 (Vitara).
1/EA Blood Pressure Monitor Interface Cable, 10 pin. Model 650-223
650-224 Reusable Blood Pressure Monitor Interface Cable, 9 pin. *

• General Electric Ohmeda Multitrak 3000.
 1/EA Blood Pressure Monitor Interface Cable, 9 pin. Model 650-224
650-225 Reusable Blood Pressure Monitor Interface Cable, 5 pin. *

• Nihon Khoden Lifescope/BSM: 1100 series, 2100 series, 2300 series¹, 3100 series, 4100 series¹, 5100 series¹, 7100 series, 7200 series, 8300 series, 8500 series, 8800 series, 9500 series¹.
• Lifescope/BSS 9800 series¹.
• Lifescope/OEC 6000 and 7000 series. Lifescope/OMP. ¹Requires adapter cable JP-910P from Nihon Kohden.
 1/EA Blood Pressure Monitor Interface Cable, 5 pin. Model 650-225
650-226 Reusable Blood Pressure Monitor Interface Cable, 6 pin. *

• Pioneer/Picker 1131 Module.
1/EA Blood Pressure Monitor Interface Cable, 6 pin. Model 650-226
650-227 Reusable Blood Pressure Monitor Interface Cable, 9 pin. *

• Burdick/Kone M200 Monitor (PA-106 Module) (Nicolay).
 1/EA Blood Pressure Monitor Interface Cable, 9 pin. Model 650-227
650-230 Reusable Blood Pressure Monitor Interface Cable, 12 pin. *
• Arrow KAAT I Plus and II Plus.
• DRE Waveline and Vida.
• Infinium Procyon and Vega.
• Kontron Minimon, Supermon, Fetalmon 2B Fetalogic 4000, K2000, IAB Balloon Pump, 7000 Series, Aero KAAT II Plus.
 1/EA Blood Pressure Monitor Interface Cable, 12 pin. Model 650-230
650-232 Reusable Blood Pressure Monitor Interface Cable, 6 pin. *

• Microcor.
 1/EA Blood Pressure Monitor Interface Cable, 6 pin. Model 650-232
650-233 Reusable Blood Pressure Monitor Interface Cable, 12 pin. *

• Datascope Expert.
• Fukuda Denshi 3000 Series.
 1/EA Blood Pressure Monitor Interface Cable, 12 pin. Model 650-233
650-234 Reusable Blood Pressure Monitor Interface Cable, 15 pin. *

• Siemens Mingograph, Micor, Cathor, Elama AB, Recor.
 1/EA Blood Pressure Monitor Interface Cable, 15 pin. Model 650-234
650-236 Reusable Blood Pressure Monitor Interface Cable, 11 pin. *

• General Electric / Marquette All GE monitors use same cable (except for discontinued).
• Datex-Ohmeda (owned by GE) Datex AM Module E-PRESTN.
• Marquette Eagle, Tram Scope 100-800 A or L Series, 8000 Series (Solar), All Dash Monitors, Tram Rac 3, Tram Rac 4A.
 1/EA Blood Pressure Monitor Interface Cable, 11 pin. Model 650-236
650-239 Reusable Blood Pressure Monitor Interface Cable, 10 pin. *

• Honeywell/PPG SMU Series, Vicom Series.
 1/EA Blood Pressure Monitor Interface Cable, 10 pin. Model 650-239
650-241 Reusable Blood Pressure Monitor Interface Cable, 12 pin. *

• Fukuda Denshi 5000 and 7000 Series.
 1/EA Blood Pressure Monitor Interface Cable, 12 pin. Model 650-241

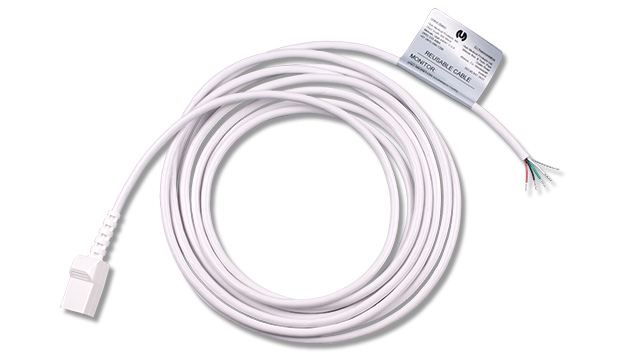

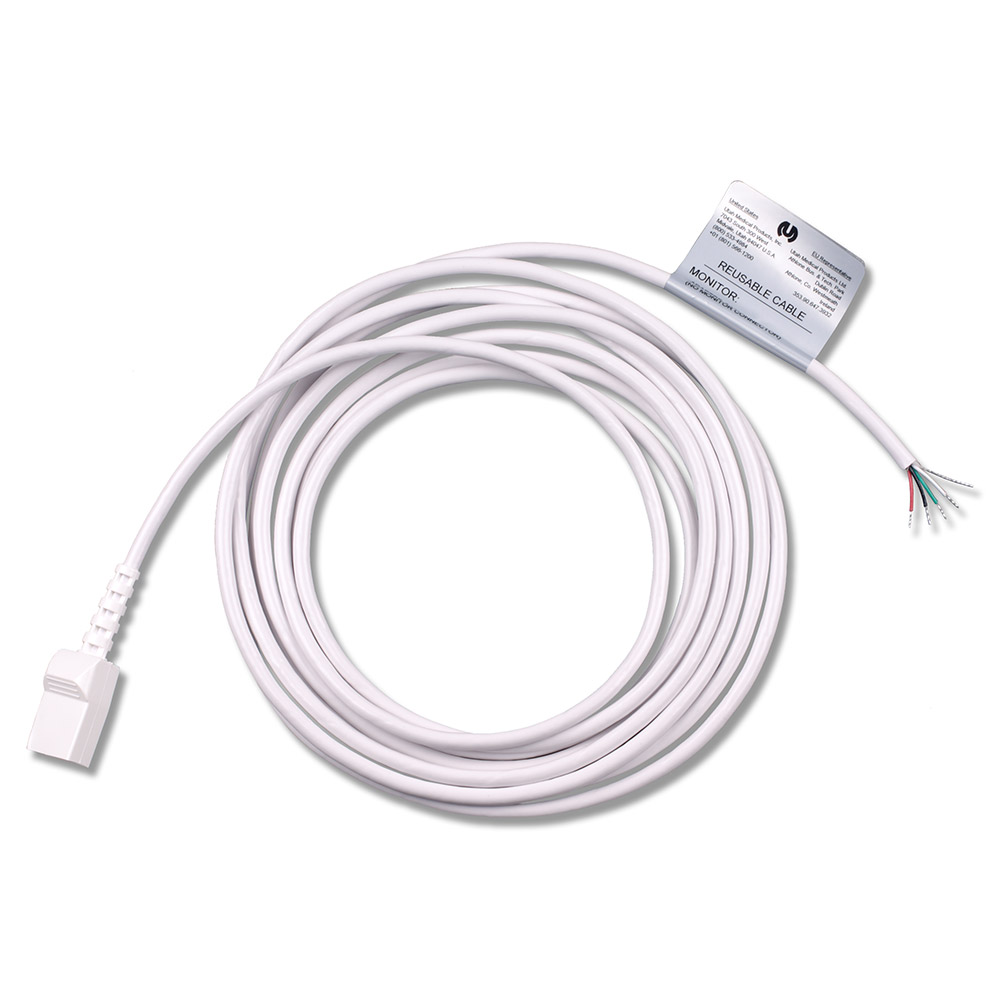

650-298 Reusable Blood Pressure Monitor Interface Cable, Unterminated. * 1/EA
* Product is CE Marked

For more information, please contact us by EMAIL or call 1-800-533-4984 | 1-801-566-1200.
